DataList

Latest Update：Jun 26 2023

Scenarios

This is suitable for scenarios where you need to query multiple records from a data source and display the returned list in a loop, such as when querying a list of users.

Basic Functions

Data querying, filtering, and pagination are the core functions of the data list component. It allows you to quickly retrieve a list of data from data models or APIs and render it on a web page, including pagination features and more.

Data Usage and Presentation

The data list is a data provider, and the data it provides can be used by all business components. Here's how it can be used:

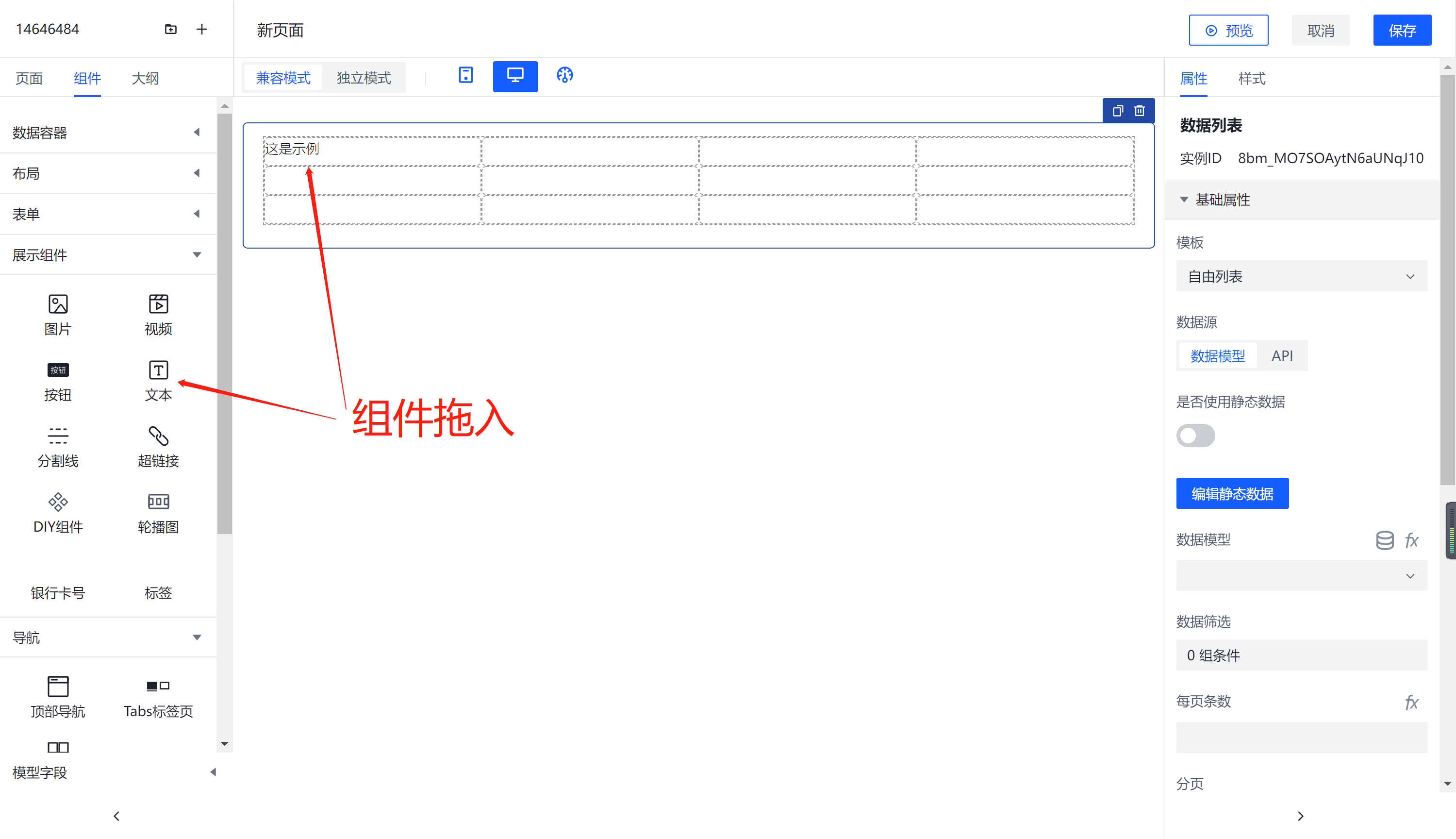

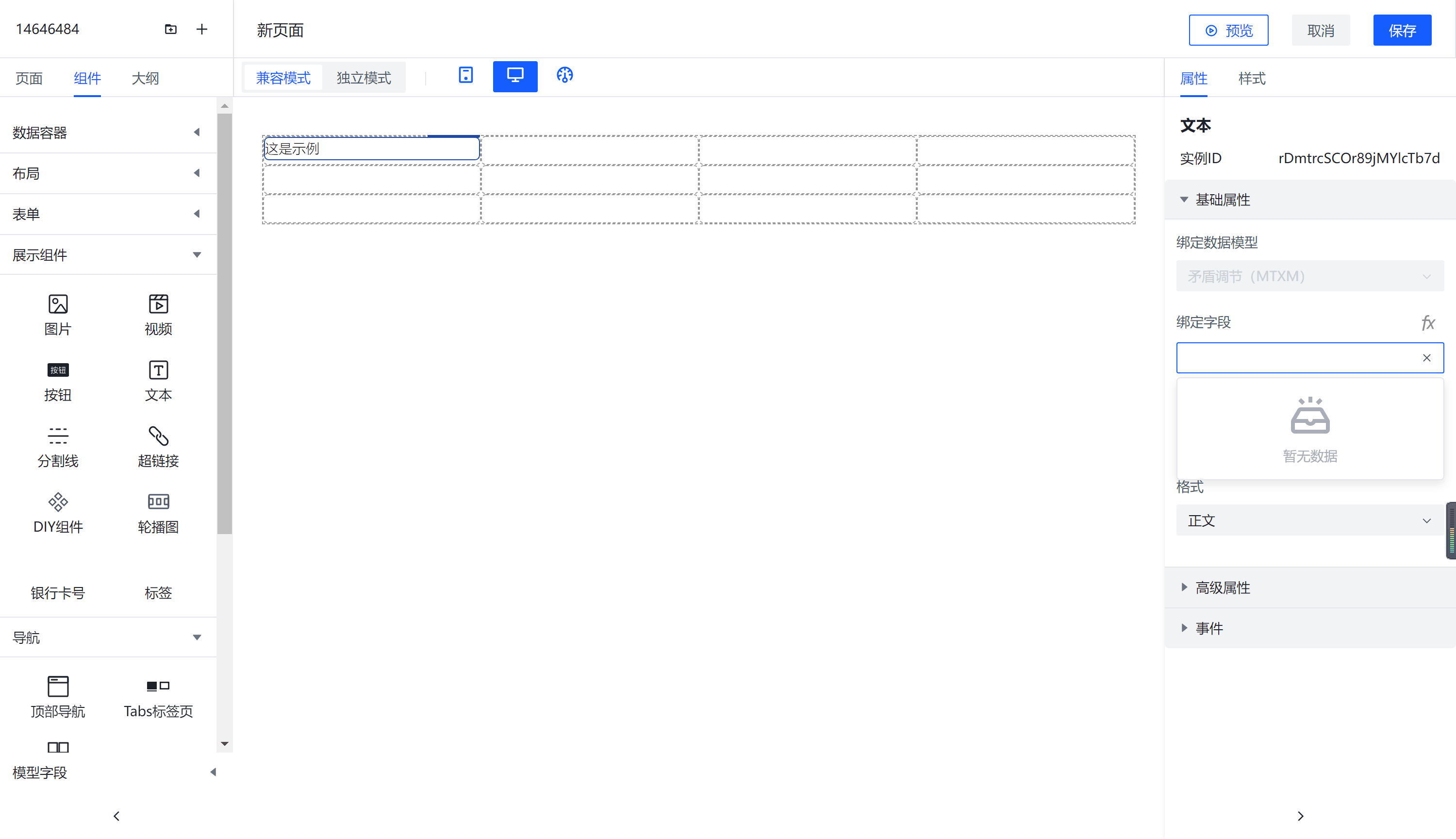

Drag the components that need to be bound to data into the data container, and click "Bind Fields" to select the data from the data container.

Requirements for Calling APIs

When calling APIs, the input and output of the calling method must meet the following conditions, otherwise, it will not be displayed correctly.⚠️

Input Parameters：

• pageNo：Page number (optional)
• pageSize：Number of items per page (optional)
• orderBy：Sorting field name (optional). Can take values from various fields in the output records
• orderType：排序方式（选填）。升序传 asc,降序传 desc。

Output Parameters：

• total：Total number of records (required)

• records： Multiple data records in an array of objects. Note: Each object in the array must include a unique identifier field, _id (text type), for features like pagination to function properly。

##Property Introduction

组件接收的外部传入的属性
